Two-stage Rotary Screw Air Compressors

Sullair two-stage tandem compressors use two sets of rotors arranged in an end-to-end design for unmatched full-load and part-load efficiency, and a two-year payback on energy savings compared to a single-stage compressor. Capacity is matched to system need for reduced cycle time and longer life. These units are 13% more efficient than single-stage screw compressors at full-load operation and 30% more efficient at part-load.

Models vary by region. Please contact your Sullair sales representative for more details.

Jump To:

Specs Contact Us
CFM
CFM

Flow

495 – 3000 cfm
m³/min
Pressure
Pressure

Pressure

100 – 175 psi
bar
Horsepower
Horsepower

Power

100 – 600 hp
75 – 447 kW

bar

6.8 – 12 bar

m³/min

14.0 – 84.9 m³/min

  • Available models:
    • TS-20—100 to 250 hp (75 to 186 kW), 500 to 1200 acfm (14.1 to 33.9 m3/min), 100 to 175 psig (6.8 to 12 bar)

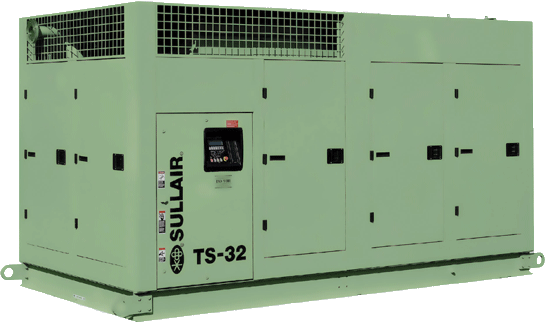

    • TS-32—200 to 350 hp (149 to 261 kW), 1105 to 1875 acfm (31.2 to 53.1 m3/min), 100 to 175 psig (6.8 to 12 bar)
    • TS-32S—400 to 600 hp (298 to 447 kW), 1681 to 3000 acfm (47.6 to 84.9 m3/min), 100 to 150 psig (6.8 to 10.3 bar)
    • V-200TS—100 to 200 hp (75 to 149 kW) Variable Speed Drive (VSD), 495 to 1000 acfm (14.0 to 28.3 m3/min), 100 to 175 psig (6.8 to 12 bar)
    • V-320TS—200 to 450 hp (149 to 336 kW) Variable Speed Drive (VSD), 945 to 2310 acfm (26.7 to 65.4 m3/min), 100 to 150 psig (6.8 to 10.3 bar)
  • Sullair air end life lengthened by superior bearing arrangement
  • Unmatched energy efficiency and two-stage durability
  • Choice of two long-life fluids
  • Choice of air- or water-cooled

  • Two-stage compressor air end
  • Superior end-to-end rotor design
  • Unparalleled energy efficiency
  • Sullair Supervisor™ Controller
  • NEMA 4 Wye Delta starter*
  • Variable Capacity Control System featuring Spiral Valve Technology
  • Easy maintenance to critical components
  • Enhanced cooler serviceability
  • Bearing fluid reservoirs
  • Interstage cooling process
  • Multi-stage air-fluid separation
  • Built-in fluid lid lifting device**
  • Fiberglass fluid filter

*TS-20 250 hp and TS-32

**TS-32 and TS-32S

  • NEMA 4 Wye-delta starter†
  • TEFC Premium Efficient motor, enclosure, cold weather package and remote cooling package (AC) only.

†TS-20 100 – 200 hp
