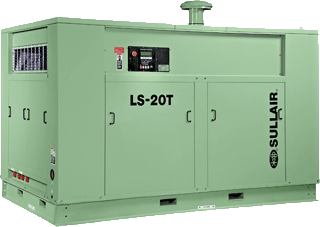

LS-20T Two-stage Extreme Pressure Rotary Screw Air Compressors

The LS-20T is a 200 to 400 hp (149 to 289 kW) two-stage compressor designed to provide extreme pressures (250 to 500 psig or 17.2 to 34.5 bar) at moderate flow (500 to 960 acfm or 14.16 to 27.18 m³/min).

Models vary by region. Please contact your Sullair sales representative for more details.

Jump To:

Specs Contact Us
CFM
CFM

Flow

500 – 960 cfm
m³/min
Pressure
Pressure

Pressure

250 – 500 psi
bar
Horsepower
Horsepower

Power

200 – 400 hp
149 – 289 kW

bar

17.2 – 34.5 bar

m³/min

14.2 – 27.2 m³/min

  • 200 to 400 hp (149 to 298 kW)
  • Capacities from 500 to 960 acfm (14.16 to 27.18 m³/min)
  • Pressures from 250 to 500 psig (17.2 to 34.5 bar)
  • Choice of air- or water-cooled

  • Direct coupled
  • Time-proven Sullair air end
  • ODP premium efficiency motor
  • Supervisor™ Controller
  • Multi-stage separation (MSS)—High efficiency air/fluid separation with Optimizer™ separator
  • Built-in aftercooler
  • Heavy duty intake filter
  • Bearing Fluid Reservoirs (BFRs)
  • Sullube®—Non-varnishing biodegradable compressor fluid

  • Sound attenuating enclosure
  • Cold weather package
  • Solid state starter
  • Full voltage starter
  • TEFC premium efficiency motor
