750 Portable Air Compressor

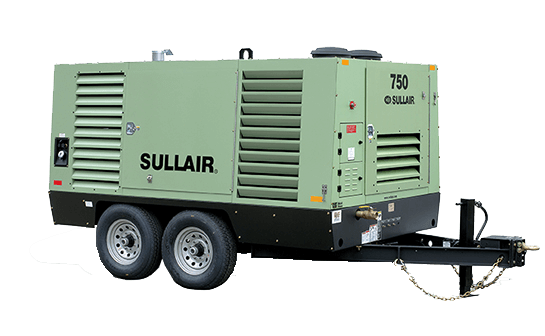

The Sullair 750 double axle rotary screw portable air compressor delivers 750 cfm at 125 psig or 21 m3/min at 9bar. Unit is designed for reliability and total accessibility. Powered by a Caterpillar Tier 3 engine. Mounting option is 2-wheel, single axle or less running gear. Enclosure is made of durable powder coated Galvanneal sheet metal. Other features include independent rubber torsion suspension, wheel bearing grease fittings, and a lockable curbside instrument panel. The compressors features a pneumatic inlet valve and 0 to 100% capacity control.



Models vary by region. Please contact your Sullair sales representative for more details.

Jump To:

Specs Contact Us
CFM
CFM

Flow

Cubic Feet Per Minute
750 cfm
m³/min
Pressure
Pressure

Pressure

Pound Per Square Inch
125 psi
bar
Horsepower
Horsepower

Power

Horse Power
300 hp
Kilowatts
224 kw

Product Specifications



750 (T3)

ACTUAL DELIVERY - CFM( M3/MIN)

750 (21)

RATED PRESSURE - PSIG (BAR)

125 (9)

PRESSURE RANGE, MIN - PSIG (BAR)

80 (5.5)

PRESSURE RANGE, MAX - PSIG (BAR)

125 (9)

ENGINE MAKE & MODEL

CATC-9ATAAC (T3)

AVAILABLE POWER - BHP (KW)

300 (224)

FUEL TANK CAPACITY -GAL (L)

115 (435)

FUEL CONSUMPTION 100% LOAD - GPH (L/H)

11.3 (42.8)






  • Rotary screw compressor
  • Removable modular canopy
  • Adjustable height hitch
  • E-Z lube axle
  • Complete fluid containment
  • High/Low pressure selector valve
  • Curbside instrument panel
  • Battery disconnect switch
  • Idle warm-up switch
  • Rocker type start switch
  • Emergency stop
  • Protective shut-down switches
  • Fuel/Water separator
  • Two-stage air filters safety element
  • 0 to 100% capacity control
  • Pneumatic inlet valve
  • AWF® compressor fluid
  • Durable powder coat finish
  • Wide track
  • Galvanneal sheet metal
  • Recessed tail lights
  • Lockable service doors
  • SSAM—Shutdown System and Annunciation Module
  • Features may vary by model, please contact your local distributor for more information on options available

  • Filtration for instrument quality air
  • Aftercooler
  • Special paint
  • Spark arrestor
  • Fuel level gauge
  • Air filter maintenance indicators
  • Block heater
  • Ether starting aid

    Options may vary by model, please contact your local distributor for more information on options available..
