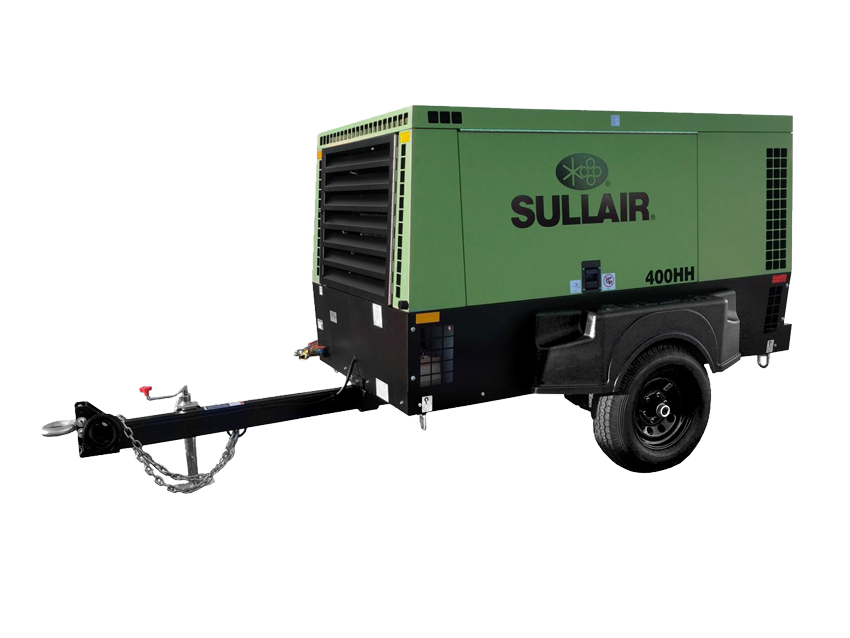

400HH Rotary Screw Compressor

Durability Meets Versatility

The Sullair 400HH portable air compressor is ready to hit the ground running for a variety of job site applications delivering 400 cfm at 200 psig (11.3 m3/min at 13.8 bar) air power. The Sullair 400HH portable air compressor is designed for reliability and total accessibility with many standard features and optional enhancements to meet or exceed any job site needs.  Powered by a Caterpillar T4F engine also meets the US EPA tier 4 final emission requirements.



Models vary by region. Please contact your Sullair sales representative for more details.

Jump To:

Specs Contact Us
CFM
CFM

Flow

Cubic Feet Per Minute
400 cfm
m³/min
Pressure
Pressure

Pressure

Pound Per Square Inch
200 psi
bar
Horsepower
Horsepower

Power

Horse Power
157 hp
Kilowatts
117 kw

Model Specifications

400HH (T4F)

ACTUAL DELIVERY - CFM( M3/MIN)

400 (11.3)

RATED PRESSURE - PSIG (BAR)

200 (13.8)

PRESSURE RANGE, MIN - PSIG (BAR)

80 (5.5)

PRESSURE RANGE, MAX - PSIG (BAR)

225 (13.8)

ENGINE MAKE & MODEL

CATC4.4 (T4F)

AVAILABLE POWER - BHP (KW)

157 (117)

FUEL TANK CAPACITY -GAL (L)

65 (246)

FUEL CONSUMPTION 100% LOAD - GPH (L/H)

7.4 (27.97)

  • Ample Service Doors
  • Highway Towable Running Gear
  • Curbside Instrument Panel on all models, T4F model includes LCD Graphic Display
  • 0 to 100% Capacity Control
  • Protective Shutdown Switches
  • Two-Stage Dry Type Air Filters
  • AWF® Compressor Fluid - All weather, all climate fluid
  • Warranty
    • 1 year standard warranty
    • 2 year standard air end warranty
    • 5 year or 10,000 hour air end warranty when continuously serviced at the recommended intervals with Sullair AWF compressor fluid and filters
  • Diesel Multi-Piece Canopy
    • engine warranty applies - contact Sullair for more information
  • Clean and Quiet Operation
    • 375  - 425H T4F family Meets US EPA Tier 4 Final emissions requirements
    • Meets US EPA sound requirements of 76 dBA @ 7 meters

  •

  • Available with or without running gear
  • Fan clutch
  • Fuel fill screen
  • Discharge temperature sensor
  • Cold weather package
  • Jack caster with wheels
  • Mechanical parking brake
  • Single or dual hose reels (non HH)
  • Filtration for instrument quality air
  • Aftercooler
  • Special paint
  • Spark arrestor
  • Cold weather starting aid
  • Fuel level gauge
  • Brakes (recommended where required by law)
  • Mechanical parking brakes
  • Ball hitch
  • Air filter maintenance indicators
  • Gauge package (Caterpillar)
  • Tachometer (Caterpillar)
  • Block heater
  • Ether starting aid (John Deere)
