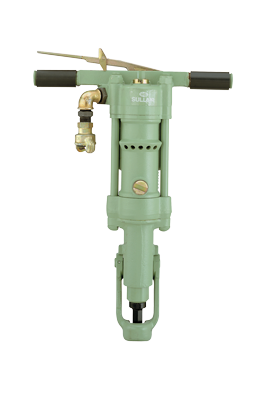

MRD-40 Rock Drill

Single-throttle lever controls all tool functions: automatic-off, blow only, and progressive drill speeds.

We eliminated many high wear parts. To you this means less loss of power due to wear, less downtime to replace worn parts, and lower overall maintenance costs.

With only two parts moving during operation, a non-corrosive automatic valve, less radial piston movement and high-tech alloys, our drills do not require special rock drill oil. Under normal operating conditions, oil carry-over from the compressor combined with moisture in the air will provide sufficient lubrication.



Models vary by region. Please contact your Sullair sales representative for more details.

Jump To:

Specs Contact Us
MRD 40
CFM
CFM

Flow

Cubic Feet Per Minute
80 cfm
m³/min

  • Weight 45 1/2 lbs.
  • Length 23 1/8"
  • Bore & Stroke 2 11/16" x 2 3/8"
  • Impact Rate 1800 blows/min.
  • Air Consumption 80 cfm (2.3 m3/min, 38 l/s)
  • Air Inlet Diameter 3/4" NPT
  • Shipping Weight 52 lbs.
  • Chuck Size 7/8" HX x 3 1/4", 7/8" HX x 4 1/4", 1" HX x 4 1/4"



Products and Features may vary, please contact your local distributor for more information on tools available in your region.

  • Dead Man Safety Handle
  • One Control for Drilling and Blowing
  • Variable Throttle Control
  • Continuous Hole Cleaning
  • Direct Rotation of the Piston
  • Less Maintenance
  • Minimal Lubrication Required
  • Oil Reservoir
  • One-Year Parts Warranty
