FX Series Standard NPT Filters

Sullair filters protect your plant equipment and processes, improve your product quality and reduce your energy costs. Sullair offers filtration products in an application range from general purpose to the most stringent food and pharmaceutical applications. Durable element construction and an efficient drain layer ensure continued performance

  • Certifications: ISO 8573-1, ASME, CRN

Models vary by region. Please contact your Sullair sales representative for more details.

Jump To:

Specs Contact Us

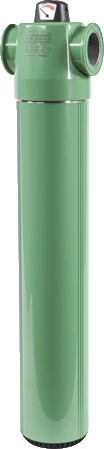

Sullair FX Series standard NPT filters
CFM
CFM

Flow

25 – 1600 cfm
m³/min
Pressure
Pressure

Pressure

maximum operating pressure
290 psi
bar

m³/min

.70 – 45.31 m³/min

bar

maximum operating pressure
20 bar

  • 1 to .01 micron filtration available
  • 25 to 1600 scfm (.70 to 45.31 m³/min)
  • Maximum operating pressure: 290 psig (20 bar)
  • Minimum operating temperature: 36°F (2°C)
  • Maximum operating temperature: 176°F (80°C)
  • Maximum operating temperature for high temperature filters (FRHT): 350°F (176°C)
  • Auto drain standard on FXF and FXH
  • Manual drain standard on FXC. FXFR, FXHR and FXFRHT
  • Vition O-ring

  • 7 element types
  • Superior construction
  • Efficient drainage layer
  • Hydrophobic micro fiber
  • Deep pleats
  • Stainless steel cores
  • Special disruptive pattern
  • PVC impregnated layer
  • End cap key fit

  • Carbon filter
  • Zero loss drains
  • Combination ball valve and strainer
  • Filter head clamping kit
  • Mounting brackets
