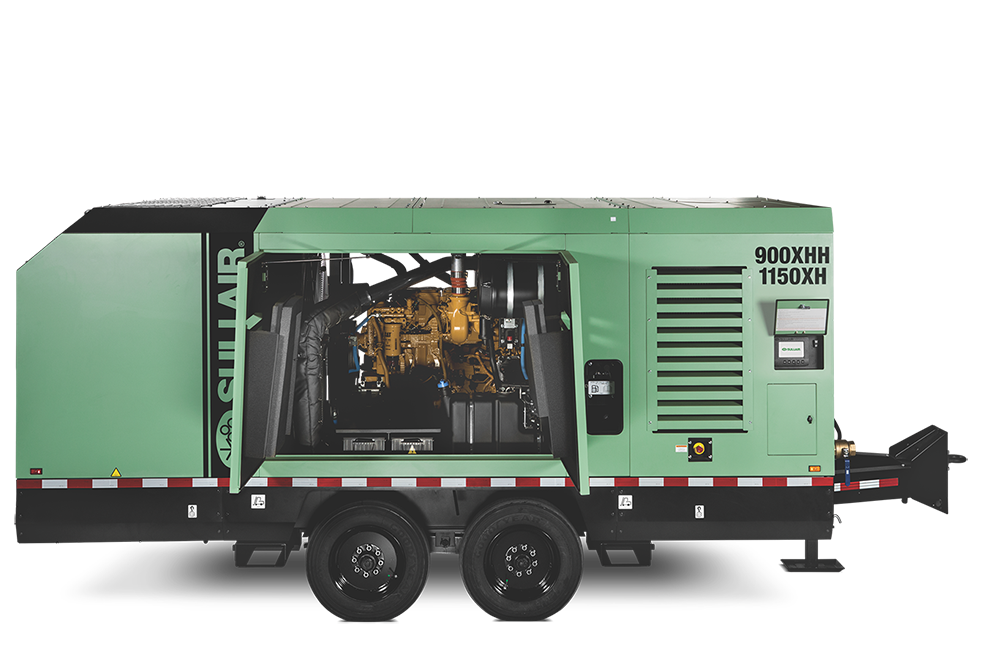

900XHH/1150XH Tier 4 Final Portable Lubricated Rotary Screw Air Compressor

Big Air is Back — And Better Than Ever

For jobs that require high volume air power, Sullair has you covered with the 900XHH/1150XH Tier 4 Final Portable Air Compressor. This compact machine fully embodies the Sullair brand promise: Reliability, Durability, Performance. Key features including:

  • State-of-the-art 7" Sullair Touch Screen Controller (STS)
  • Improved air flow capabilities
  • Ease of access to maintenance items



Models vary by region. Please contact your Sullair sales representative for more details.

Jump To:

Specs Contact Us
900/1150 T4F
CFM
CFM

Flow

900 - 1150 cfm
25.5 - 32.6 m³/min
Pressure
Pressure

Pressure

200 - 500 psi
13.8 - 34.5 bar
Horsepower
Horsepower

Power

540 hp
403 kw

Proven and Durable Package

  • Legendary Sullair 25-Series Air End
  • Highway towable running gear
  • Improved 1500-hour air-oil separator design with lower compressor lubricant requirements
  • Multiple lockable service doors

Reliable Caterpillar C15 engine

  • Tier 4 Final compliant
  • Extended 500-hour engine oil service level
  • 900 cfm at 500 psi
  • 1150 cfm at 350 psi
  • HPL 1500 High Pressure Portable Lubricant standard factory fill for compressor

Compact Design

  • 20% smaller for easier maneuverability, storage and transit*
  • Nearly 2500 pounds lighter for easier tow and load*
  • Forklift pockets standard for ease of transport
  • Two-machine loadability on step-deck trailer

Improved Fuel Efficiency

  • Approximately 20% lower part load fuel consumption*
  • 10% overall fuel consumption improvement*
  • Up to 10 hours of runtime from onboard fuel source
  • Easy-operation valve to connect to an external fuel source for extended duty runtime

Available With and Without Running Gear

7" Sullair Touch Screen Controller (STS)

  • In-depth compressor and engine performance information on demand
  • Rugged touch screen works even when wearing gloves
  • User access passcode
  • Full color, digital displays

Sullair AirLinx® — a Telematics Solution Providing:

  • GPS to keep track of your machines via Internet-connected devices
  • Fleet management
  • Remote monitoring and troubleshooting

*Compared to previous Sullair models

Options & Extras

  • Aftercooled
  • Refinery package

Service Features & Options

  • Fast evac oil change
  • Maintenance kits available for service intervals from 50-2500 hours

Performance

  • Actual Delivery cfm (m³/min): 900 (25.5)/1150 (32.6)
  • Rated Pressure psig (bar): 500 (34.5)/350 (24.1)
  • Pressure Range, max/min psig (bar): 500 (34.5) / 200 (13.8)
  • Maximum Operating Altitude ft (m): 12,000 (3658)
  • Fuel Consumption Full Load gal/h (l/h): 24 (90.8)/ 24.5 (92.7)
  • Sound Level (U.S. EPA) dbA: 76
  • Ambient Capability °F: -20 to 120

Weights & Dimensions

DPQ

  • Working weight lbs (kg): 18,980 (8627)
  • Dry weight lbs (kg): 17,164 (7802)
  • Length in (mm): 239 (6,071)
  • Width in (mm): 88 (2,235)
  • Height in (mm): 101 (2,565)

DLQ

  • Working weight lbs (kg):17,472 (7942)
  • Dry weight lbs (kg): 15,656 (7116)
  • Length in (mm): 208 (5,283)
  • Width in (mm): 88 (2,235)
  • Height in (mm): 89 (2,261)

Engine

  • Make (Emissions Level) Caterpillar C15 Diesel (T4F)
  • Displacement in³ (l): 928 (15.2)
  • Cylinders: 6
  • Bore x Stroke in (mm): 5.4 (137) x 6.73 (171)
  • Operating Speed rpm: 1800
  • Minimum Idle Speed rpm: 1400
  • Fuel Tank Capacity gal (l): 249 (943)
  • DEF Capacity gal (l): 12.8 (48.4)
