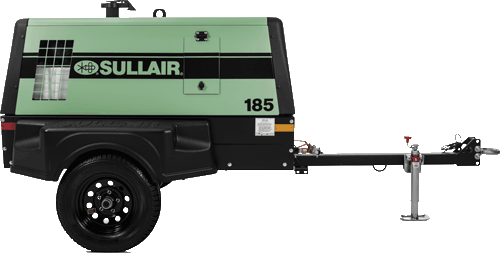

185 Tier 4 Final Portable Air Compressor

NEXT GENERATION OF PORTABLE PERFORMANCE

The workhorse of our elite mobile fleet, the Sullair 185 is fully optimized and ready to hit the road.

  • Improved Sullair 14-Series Air End
  • Compact Design
  • Easy service and maintenance





Models vary by region. Please contact your Sullair sales representative for more details.

Jump To:

Specs Contact Us
185 Tier 4 Final
CFM
CFM

Flow

185 cfm
5 m³/min
Pressure
Pressure

Pressure

100 psi
7 bar
Horsepower
Horsepower

Power

49 hp
36.5 kw

  • Improved Sullair 14-series air end, continuing the tradition of reliable durability
    • Integrated leak-free design
    • Direct drive
  • Proven Kubota engine
    • Tier 4 final emissions compliant
    • Turbo-charged to handle high altitudes
  • Improved fuel efficiency with a 27-gallon fuel tank — up to 10 hours of use
  • Compact design for improved maneuverability

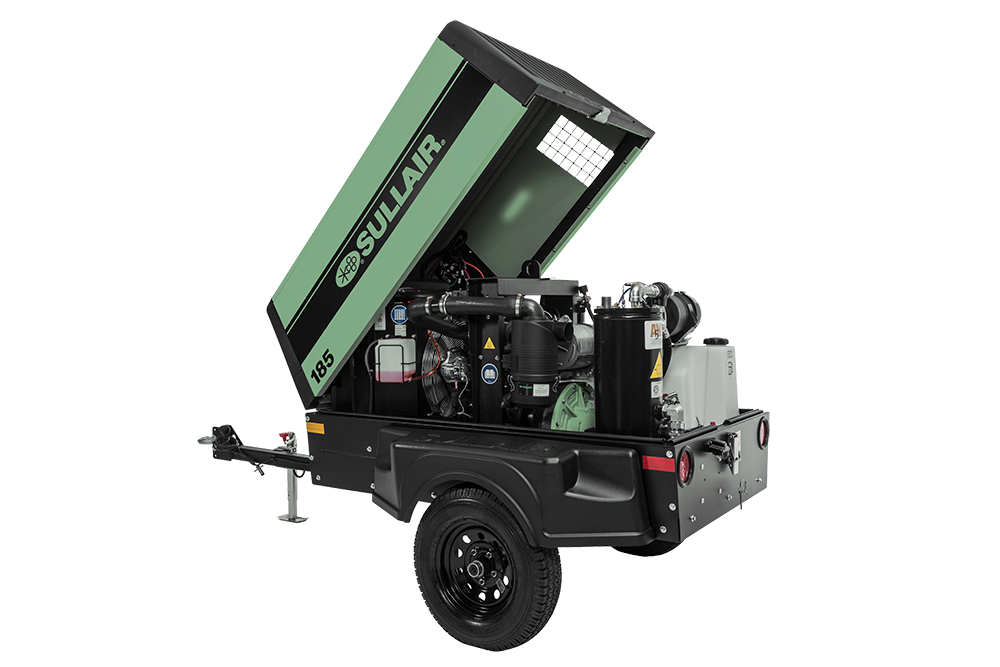

  • Easy service and maintenance
    • Improved access to engine air filter and oil dipstick
    • Consolidated fuse/relay box in one location
  • AWF® all-weather lubricant standard fill —  helps keep your compressor running in extreme conditions

  • DLQ— Less Running Gear
  • Single Hose Reel
  • Double Hose Reel

General

Actual Delivery cfm (m³/min): 185 (5.2)
Rated Pressure psig (bar): 100 (7)
Pressure Range min/max (bar): 80 (5.5) / 125 (18.6)

Engine

Make & Model: KUB1803 (T4F)
Operating Speed rpm: 2720
Available Power bhp (kW): 49 (36.5)
Displacement in³/cm³: 111 (1826)
Cooling System Capacity gal (l): 2.75 (10.4)
Engine Oil Capacity qts (l): 7.3 (6.9)
Fuel Tank Capacity gal (l): 27 (102.195)
Electrical System Voltage: 12
Battery Rating CCA: 1000


Compressor

Service Valves No. & (Size): 2 (2 ¾ ")
Compressor Oil Capacity gal (l): 2.1 (7.9)


DPQ Package — Includes Running Gear
Working weight lbs (kg): 2175 (987)
Dry weight lbs (kg): 1960 (889)
Length in (mm): 130.8 (3322)
Width in (mm):59.2 (1504)
Height in (mm): 58 (1473)
Track Width in (mm): 50.9 (1293)
Max Towing Speed mph (km/h): 55 (89)
Axle Rating lbs (kg): 3700 (1678)
Tire Size: 175/80D13


DLQ Package — Less Running Gear
Working weight lbs (kg): 1950 (845)
Dry weight lbs (kg): 1740 (789)
Length in (mm): 79.3 (2014)
Width in (mm): 40.7 (1034)
Height in (mm): 47.8 (1214)

Performance
Fuel Consumption 100% Load
gph (l/h): 2.7 (10.2)
Max Operating Altitude ft (m): 9000 (2743)
